Air Cooled, Built-In Storage Bin

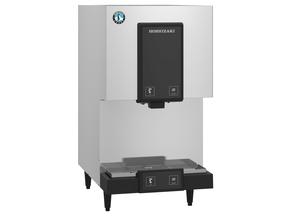

The DCM-271BAH is capable of producing approximately 257 lbs. of Cubelet nugget-style ice cubes per day. The built-in storage bin will hold up to 10 lbs. of ice* at a time. This Air-cooled icemaker has a Push button operation that dispenses ice or water. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features Advanced CleanCycle24 design – it performs a 2 second purge every hour to clean itself and it is Protected by H-GUARD Plus Antimicrobial Agent. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft3 average density of ice.

Daily Ice Production: 257 lbs.

Certifications: NSF, UL Listed, AHRI Standard 810, ADA Compliant

Electrical Specs: Single phase, 115v/60/1 6 ft. cord with a NEMA 5-15 plug, Amperage: 8.5, Max Fuse/HACR Breaker: 15 A

Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent

Utility Consumption: 6.9 kWh per 100 lbs. @ 90/70, 12 gal of Potable Water per 100 lbs. @ 90/70

Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3300 BTU/hr., Refrigerant Charge: R-404A, (14.8 oz. / 420 g)
